In Part 1 I showed how to create and publish a simple Orchestration demo. Now we’ll finish configuring it in the admin console and test it.

Open the BizTalk Server 2009 Administration Console, and expand BizTalk Server 2009 Administration, then Applications. You should have an entry for OrchestrationPortDemo – expand it as well.

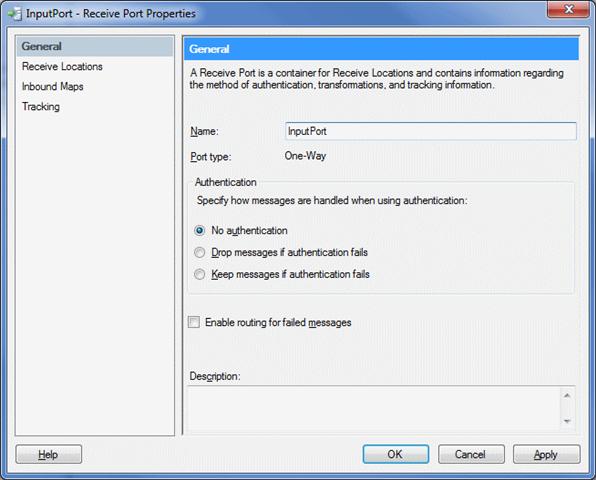

First, we’ll add the Receive Port – the place that we’ll drop the test file. Right-click on Receive Ports and select New One-way Receive Port. On the General tab, name it InputPort, then click over to Receive Locations.

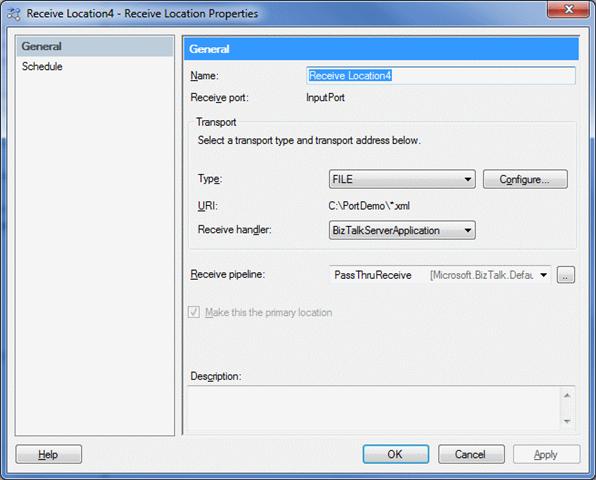

Click New to add a new location. Your receive location can be FTP, SQL, WCF, SharePoint, or many other choices, but for this demo we’ll add a File location. Click the Configure button and set a receive folder (something like “C:\PortDemo\”) and a file mask (stick with “*.xml” for now) and click OK three times to create your Receive Port.



Next we’ll create the Send port – the location where BizTalk will drop the file. Right-click on Send Ports and choose New Static One-way Send Port. Give it an appropriate name, and configure the FILE Transport Properties as shown:


Click OK twice and your Send Port will be created.

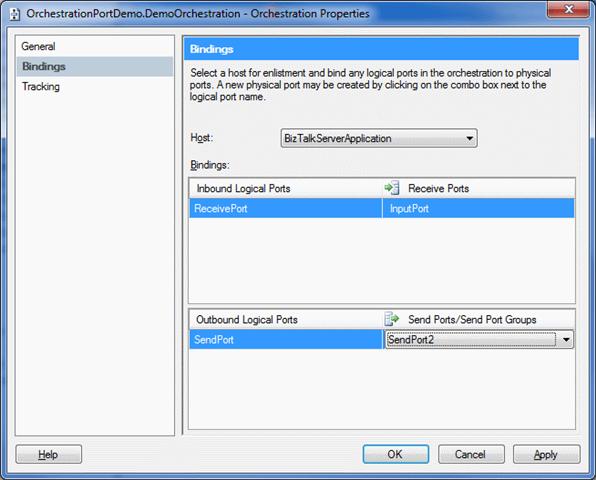

Now we’ll configure the Orchestration Bindings. Click on Orchestrations, then right-click the orchestration itself and select Properties. Select the Bindings tab. Choose BizTalkServerApplication as the host, and select the Send and Receive ports you previously created, as shown:



Now it’s time to fire everything up. Right-click on the send port you created and click Start. Once the Status column displays “Started”, click on Receive Locations and Enable the Receive Location previously created. Finally, start the Orchestration.

Now, time to test! Create a simple xml file like:

<root>
   <Node1>Test</Node1>
   <Node2>Test</Node2>
</root>

And drop it into the C:\PortDemo folder. After a couple of seconds the file should disappear – this indicates BizTalk has picked it up for processing. Look in the C:\PortDemo\Output folder and you should see an xml file with a GUID for a name, like {7C50104F-FC3E-4A49-B2FA-4F560A37636D}.xml. Open it to verify that it matches your input file.

Practically, this demo doesn’t do a whole heck of a lot, but it shows you the basics for building, publishing and running an orchestration.
