How To Copy A Schema Container To Another SQL Azure Database

This article is written to assist SQL Azure customers to copy a SCHEMA container from one SQL Azure database to another. Schema separation (or compress shard) is a technique used by applications that hold multiple customer “databases” inside the same physical database, but separated logically by a SCHEMA container. At times it may be necessary to copy a given SCHEMA container from one database to another. Copying a SCHEMA container from one database to another can be very difficult because you need to only extract and import the data contained in the tables found in that schema.

If your SQL Azure database has multiple schema containers in it, and you would like to copy the objects under that schema to another database, you can do so by following the steps below. The article uses the Enzo Backup tool (, designed to help in achieving this complex task.

Example Overview

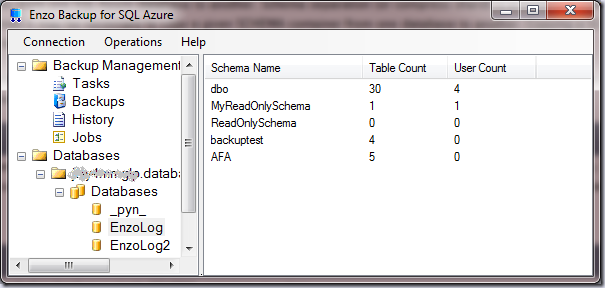

Let’s assume you have a database with multiple SCHEMA containers and you would like to copy one of the schema containers to another database. A SCHEMA container holds tables, foreign keys, default constraints, indexes and more. In the screenshot below the selected database has 5 schema contains: the DBO schema and 4 custom SCHEMA container. The tool allows you to copy the objects from any schema into another database.


Backing Up Your SCHEMA Container

The first step is to backup your schema. Enzo Backup gives you the options needed to backup a single SCHEMA container at a time.

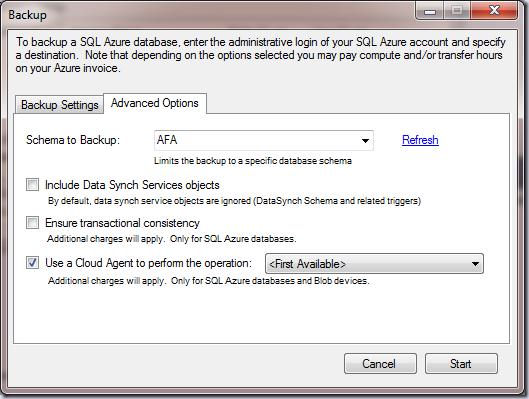

1- If you have registered your databases previously with the backup tool, select the database from the list of databases on the left pane, right-click on the SCHEMA container (i.e. your logical database) and select Backup to Blob (or file). Otherwise click on the Backup –> To Blob Device from the menu and enter the server credentials, and specify the name of the SCHEMA to backup from the Advanced screen.

2- Type the name of your backup device

3- Optionally select a cloud agent if you are saving to a Blob on the Advanced tab (note: a cloud agent must be deployed separately)

4- Click Start


Restoring Your SCHEMA Container

Once the backup is complete, you can restore the backup device to the database server of your choice. Note that you could restore to a local SQL Server database or to another SQL Azure database server.

1- Click on Backups on the left pane to view your backup devices and find your device

2- Right-click on your backup device (file or blob)

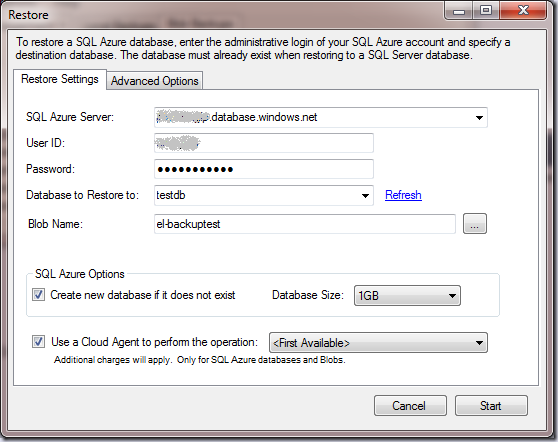

3- Enter the credentials of the server you are restoring to and the name of the database

4- If the database does not exist, select the Create If… option

5- Optionally, if you are using a Blob device and restoring to a SQL Azure database, check the Use Cloud Agent (note: a cloud agent must be deployed separately)

6- Click Start


If for some reason the database you are restoring to is not empty, you may see a warning indicating that the database has existing objects. Click “Yes” to continue. When the operation is complete, you can inspect your database to verify the presence of your logical database.


- You can restore additional SCHEMA containers on an existing database. You would simply need to repeat the above steps for each SCHEMA container.

- If your intent was to “move” the SCHEMA container, you will need to clean up the original database. Once your SCHEMA container has been copied, and you have verified all you data is present in the destination database, you will need to manually drop all the objects in the source database before dropping the SCHEMA container.

- This tool does not support backing up SQL Server database. However you can restore a backup device created with Enzo Backup on a local SQL Server database if desired.
