Welcome to eBoard

Hello and welcome to this series of application development using asp.net mvc, jquery, automapper, ninject.  Though the world doesn't need another blog engine, but sometimes reinventing the
wheel teaches you many unknown things and it's the learning experinece that counts more than anything else.

I have been using asp.net mvc + jquery for about a year now.  So, it's time to put down something which will help the beginner with this technologies get a good graps of the fundamentals skill required
to do web development.

The side effect of this is we will also learn about some design principles, best practices and troubleshooting will add icing to the cake.

Without further ado, lets begin.  Let's first lay down the basic business requirement for the blog engine.  This may be simple in form, but will help us keep an eye on the actual requirement and prevent
us from deviating from the main goal.

The blog engine will be named as "eboard".

Requirements

  1. Multi blog support : The user should be able to create multiple blogs.
  2. Make posts
  3. Assign a category to the post
  4. Assing one or more tags to the post
  5. Allow readers to post comment
  6. Comment Moderation
  7. Simple Blog Settings like theme selection.

Apart from creating a working blog engine the following are educational/learning benefit the reader may derive from this experience

  1. Learn asp.net mvc and jquery
  2. Learn to design/extend a validation framework
  3. Learn about Repository pattern
  4. Learn dependency injection using Ninject.
  5. Service design
  6. Design for testability (though we won't be writing test at this point in time).

With the above requirements in mind lets move ahead a take a shot at creating the database for our blog.   Some of the reader may frown at this idea.  Designing the database first or the model first is akin to
the chicken and the hen problem.  But for this small application I think the database design will closely mimic the model as well.  Please free to shout at me if you feel anything is terribly wrong here.

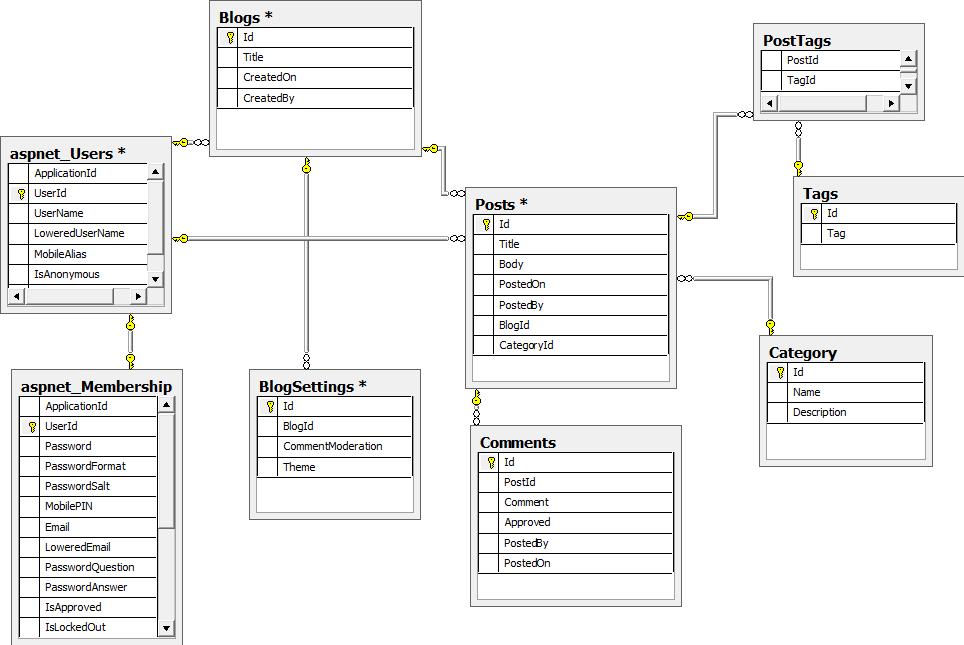

The initial DB model looks like the figure shown below.


DB Model

We are using the membership provider for users and roles. The above DB model gives us a good start in designing our blog.  It has all the essential elements to support the business
requirement that we have laid out for "eboard".

The below table highlights the essential details about the above model.

BlogSettings This stores the essential settings related to blog.  Curently it has only the name of the theme and comment moderation flag.  This can be extended as required.
Blog This allows us to have multiple blog created.
Post The posts that goes with the blog.
Comment The comments that goes with the post.
Category A post can belong to only one category.
Tags A post can hve multiple tag.  Tags are useful for search.


That's it for this episode.  In the next episode we will layout the folder structure for the "eboard" application.  Till then happy learning and enjoy blogging.

Posted on Friday, November 27, 2009 12:17 AM jQuery , asp.net mvc , Application Development | Back to top
